WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line

Name: WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line
Brand: West River
SKU: WJ250 series
Price: 500 USD
Availability: InStock
ISBN: 12202516

Datos del producto:

Place of Origin:	China
Nombre de la marca:	West River
Certificación:	ISO, CE
Model Number:	WJ250 series

Pago y Envío Términos:

Minimum Order Quantity:	1
Precio:	$500,000.00 - $1,500,000.00
Packaging Details:	12 containers
Delivery Time:	120days
Payment Terms:	L/C, T/T
Supply Ability:	40 sets/per year

Contacto

Descripción detallada del producto

Width:	1200-2500mm	Speed:	250m/min
Type:	3ply & 5ply

Product Description

1. Model: WJ250

2. Max. Speed: 250m/Min

3. Standard: GB

4. Certification: ISO9001, CE

Model	WJ250 Series
Design Speed	250m/min
Width	1200-2500mm (option)
Production Volume	~320,000 - 680,000 sq.m/day
Flute type	A, B, C, E, F, G flutes (height customized)
*Size(LWH)*	80m9m5.4m
Steam consumption	3500kg/h(1.1-1.2Mpa)
Power supply	~300KW ,~380Vac, 50HZ, 3 phases 4 wires
Pre-heater	Cylinder(Rotary/Fix) or Arc plate(new) or Cylinder Block(temperature sensor)
Correction device	Auto tension control device
Double Facer	Air bag, Auto steam system
Steam system	With
Air Compressor	With
Display Board	With
Auto-centralized	With
Auto-Splicer	With
PMS SYSTEM	Option
Intelligent temperature system	Option
Surface Color	Option
ERP System	Option
Roll Paper and Cardboard logistic system	Option
Changing Orders without stop	Option
Deliver day	120 days
Installation	By supplier
Warranty	1 year

West River brings different technologies for customers options, according to different customer's situation, we provide customized deisgn solution for highly automatic and intelligent products. Our high speed inner vacuum single facer has been proved around the world customer for different solutions and situation. The high strength cardboard and stable performace, good service win our good reputation around our customers.

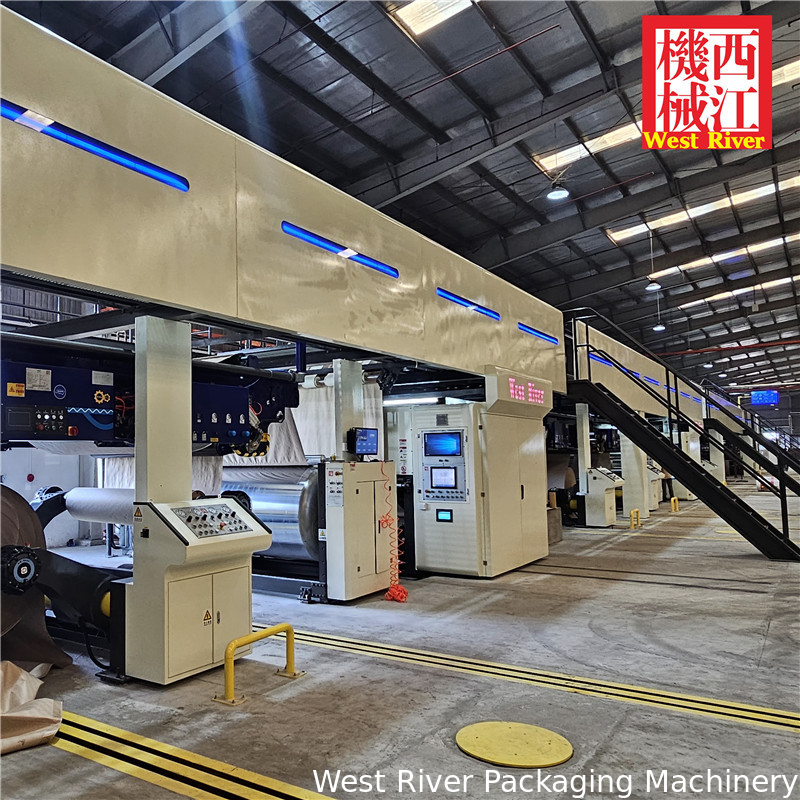

Product Show

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 0

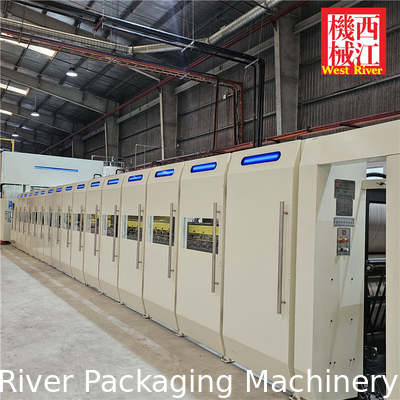

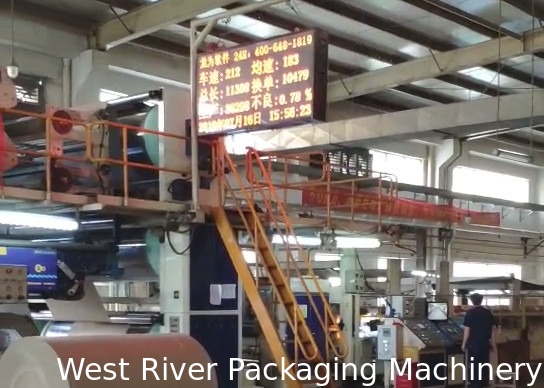

10 Year After Installation of WJ250 Production Line

Speed 245m/min

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 5

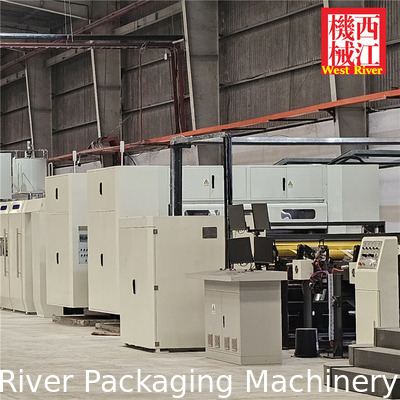

West River Provides Best Quality Equipment

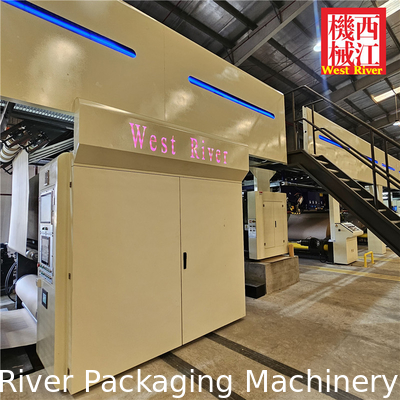

Layout Design

Our profession engineers are able to design the complete factory layout according to your requirements.

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 6

Finish products

Our equipment help you to produce high-quality cardboard and carton.

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 7

What do you know about our machines?

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 8

In the past couple of decades we have always insisted on high quality, our products are exported to more than 30 countries.

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 9

WestRiver Packaging Machinery was founded in 1954. The first semi-automatic single facer of China was born at our factory in 1978. It was the prelude of corrugated packaging industry.

Our engineers are available to service overseas

We attend to the trade fairs all over the world

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 10

You are always welcome to visit our factory

WJ250 Series 5Ply Automatic Corrugated Cardboard Carton Box Production Line 11

We adhere to the "quality first, reputation first" business purposes, and continuously forgeahead.

FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
