2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes

Name: 2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes
Brand: West River
SKU: WJ300-2800-2
Price: 750 USD
Availability: InStock
ISBN: 11878305

Datos del producto:

Place of Origin:	China
Nombre de la marca:	West River
Certificación:	ISO, CE
Model Number:	WJ300-2800-2

Pago y Envío Términos:

Minimum Order Quantity:	1
Precio:	$750,000.00 - $1,200,000.00
Packaging Details:	12 containers
Delivery Time:	150days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/per year

Contacto

Descripción detallada del producto

Product Description

1. Model: WJS300-2800-2

2. Speed: 300m/Min

3. Standard: GB

4. Certification: ISO9001, CE

Features

Fully Automatic Wet End Corrugators

20mins change flutes, multi flute production

Auto Splicer connect with PMS, change orders without stop

Auto tension, glue thickness, temperatue, moisture control

Fit: Already buy dry end corrugation machines from other companies, High end corrugated cardboard production line

Model	WJS300-2800-2 5ply Wet End Corrugators
Speed	300m/min
Width	2800mm (other options: 1400-2500mm)
Production Volume	~900000sq.m/day
Flute type	A, B, C, E flutes ( 2 Quick Cassette type single facers, 20 mins change flute)
*Size(LWH)*	71m9m5.4m
Steam consumption	3000kg/h(1.1-1.2Mpa)
Power supply	~450KW ,~380Vac, 50HZ, 3 phases 4 wires
Pre-heater	Half Circle (high effective heating type)
Correction device	Automatic
Double Facer	Air bag(16 groups)
Steam system	With
Air Compressor	With
Display Board	With
Auto-centralized	With
Auto-Splicer	With
PMS SYSTEM	Option
Spray system	Option
Surface Color	Option
ERP System	Option
Roll Paper logistic system	Option
Connection with Dry End	Support different brands, support Siemens PLC Profibus connection
Deliver day	90 days
Installation	By supplier
Warranty	1 year

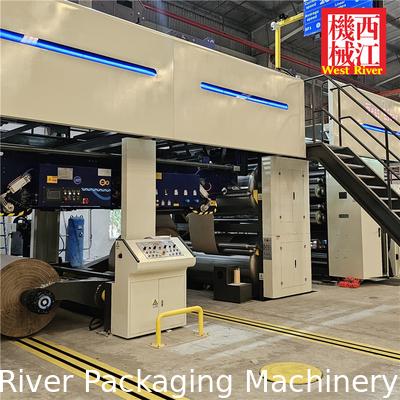

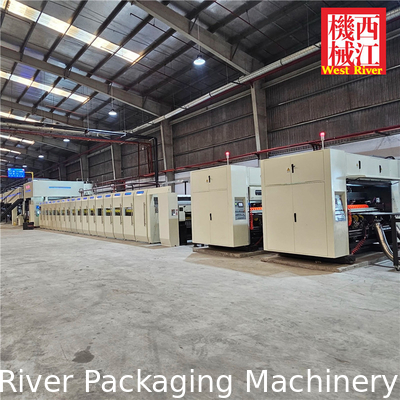

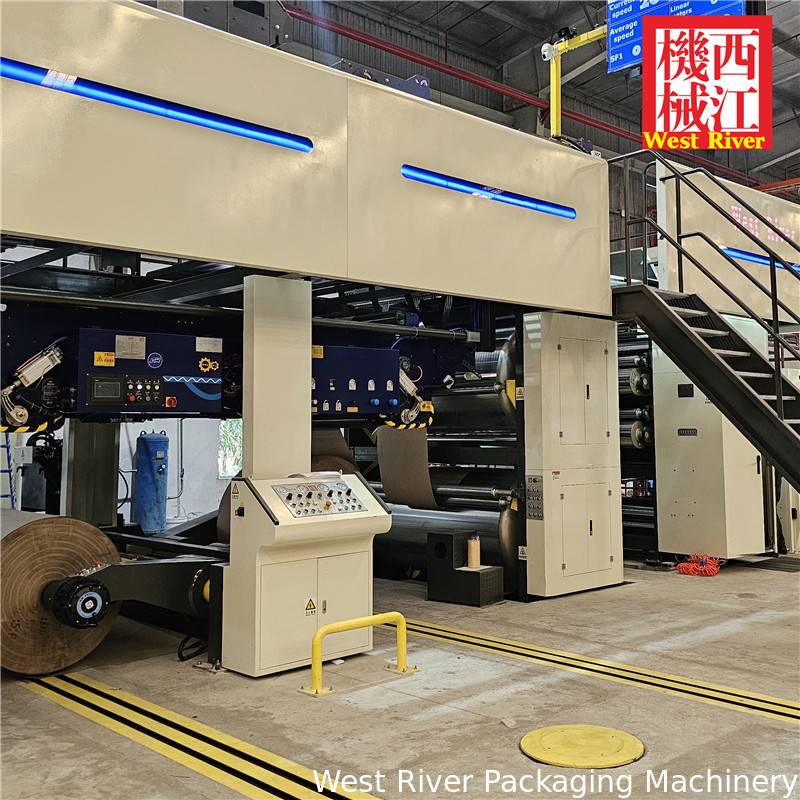

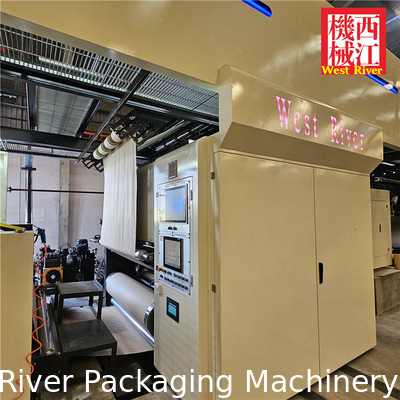

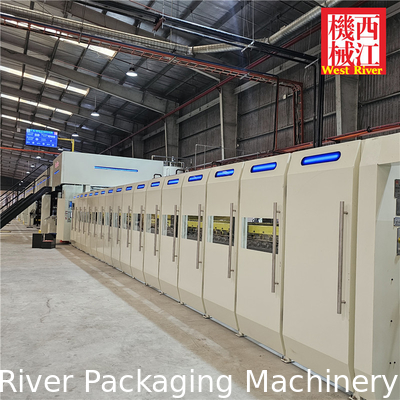

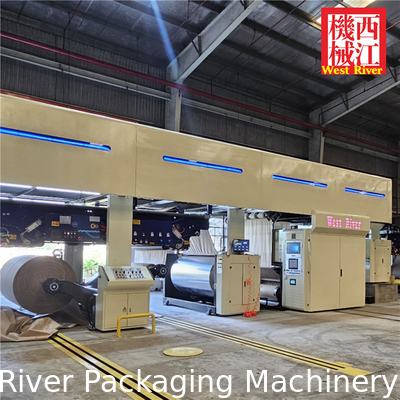

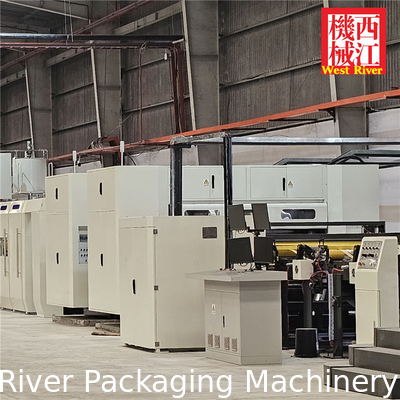

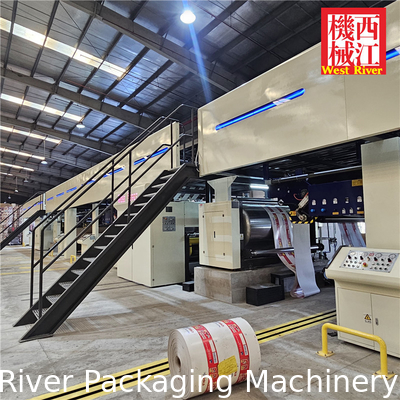

Product Show

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 0

Layout for our customer

Our profession engineers are able to design the complete factory layout according to your requirements.

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 6

Finish products

Our equipment help you to produce high-quality cardboard and carton.

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 7

What do you know about our machines?

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 8

In the past couple of decades we have always insisted on high quality, our products are exported to more than 30 countries.

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 9

WestRiver Packaging Machinery was founded in 1954. The first semi-automatic single facer of China was born at our factory in 1978. It was the prelude of corrugated packaging industry.

Our engineers are available to service overseas

We attend to the trade fairs all over the world

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 10

You are always welcome to visit our factory

2800mm 5PLY Corrugated Cardboard Production Line | 20 mins change flutes 11

We adhere to the "quality first, reputation first" business purposes, and continuously forgeahead.

FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
